HM 250 Fundamentals of fluid mechanics

Features

  • intuitive experiment execution via touch screen (HMI)
  • integrated router for operation and control via an end device and for screen mirroring on up to 10 end devices: PC, tablet, smartphone
  • network capability: access to ongoing experiments from external workstations via the local network
  • automatic identification of accessories via RFID technology
  • water and energy saving technics, space-saving setup

  • Share on

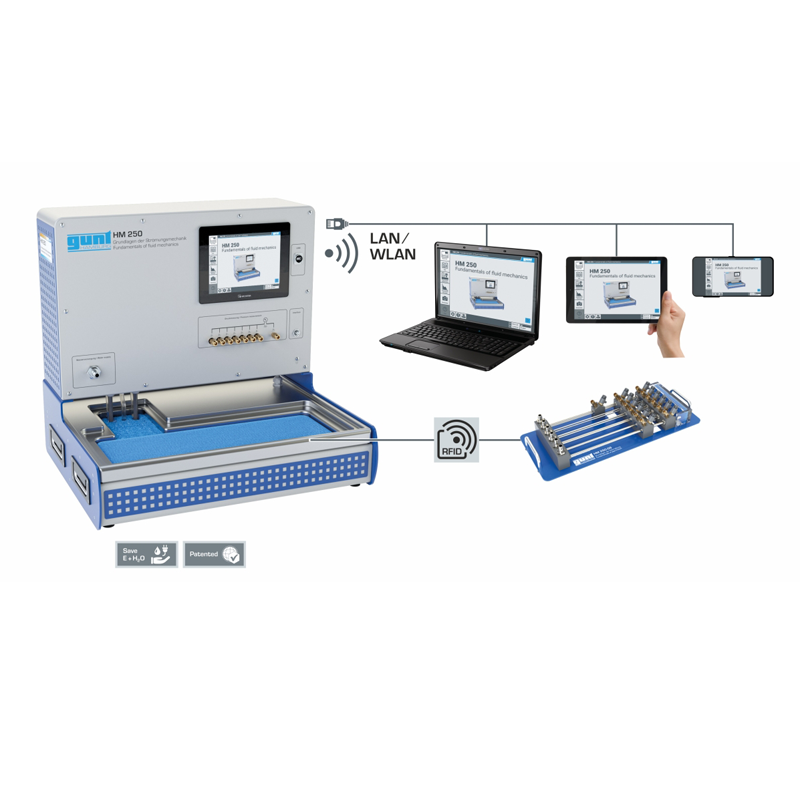

The series HM 250 ”GUNT Fluid Line” offers a versatile experimental introduction to the fundamentals of fluid mechanics. The HM 250 base module provides the basic supply via energy and water-saving technics for each of the individual experiments: a closed water circuit with integrated heater, a worktop for the individual experimental units and drip water collection. Connections for water cooling are included, which are connected to a water supply provided by the laboratory. The base module also provides the measurement and control equipment as well as the communication systems.

An extensive selection of optionally available accessories provides a complete course in the fundamentals of fluid mechanics. The accessories are simply and safely positioned on the worktop of the base module. After positioning, the base module identifies the respective accessory via RFID technology, automatically selects the appropriate software in the PLC and performs an automatic system configuration.

Specification

  1. base module for experimental setup of basic experiments in fluid mechanics
  2. automatic identification and configuration of accessories via a contactless, electronic RFID interface
  3. automatic bleeding of the experimental sections
  4. plant control with PLC, operation via touch screen or an end device
  5. screen mirroring: possible to mirror the user interface on up to 10 end devices
  6. network capability: access to ongoing experiments and their results from up to 10 external workstations simultaneously via the local network
  7. water and energy saving technology, space-saving setup
  8. closed water circuit with integrated heater and storage tank, submersible pump and measurement and control equipment
  9. storage tank with foam insert for calming the water movement
  10. connections for water cooling available, water supply provided by the laboratory required
  11. worktop with internal edge for safe positioning of the individual accessories and for collecting dripping water
  12. extensive accessories available
